Centralised Coin Payment Terminal
Stainless steel custom made centralised coin selector system. This easy-to-use system solves the problem of emptying many coin boxes. This system fits perfectly in nowadays modern car cleaning centres. The coins are collected in an external safe for a better security.
This system is always in combination with the tool holders, because the system will start-up after taking the cleaning tool out of the holder.
This system is recommended for small up to middle size carwash central vacuum systems.
Type | Material |
CPS0XX | stainless steel |

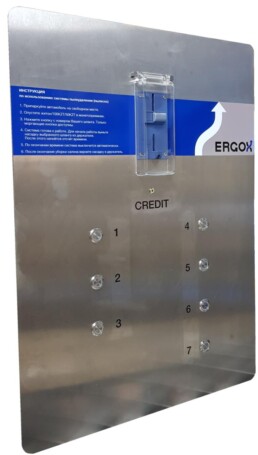

Centralised Coin Payment Terminal BUILD-IN
Build-in stainless steel custom made centralised coin selector system. This easy-to-use system solves the problem from emptying many coin boxes. This modern up-to-date system fits perfectly in nowadays modern car cleaning centres. The coins are being collected in an external safe for a better security.
This system is always in combination with the Ergox tool holders, because the system will start-up after taking the cleaning tool out of the holder.
This system is recommended for small up to middle size carwash central vacuum systems.
Type | Material |
CPS1XX | stainless steel |
Free Standing Centralised Payment Terminal
Modern free standing payment terminal.
Type | Material |
PTF0XX | steel, powder coated |
Electronic Coin Acceptor System
Tropicalised electronic coin acceptor system (RM5).
Stainless steel plate to build into the pillars or the Ergox free standing pillar system.
This system is only to use in combination with the ERGOX coin extraction system.
Type | Voltage, VDC | Weight, kg | Dimentions, HxWxD, mm |
CON002 | 24 | 0.75 | 120×270 |
Coin Extraction Box with Electronic Coin Acceptor
Extraction box with build-in electronic coin acceptor for installation on the wall (in cases when free standing pillars are not installed).
Only to use in combination with ERGOX coin extraction system.
Exclusief the hose holder.
Type | Voltage, VDC | Weight, kg | Material | Dimentions, HxWxD, mm |
CEB001 | 24 | steel, powder coated | 570x130x130 |
Coin Extraction System
Coin extraction system for coins collecting. No more emtying many coin boxes, no chance for thieves. The coins will be automaticly transported to the coin box that is installed in a secured place.
Maximum 5 coin acceptors in 1 line, the box is available up to 3 lines, good for 15 coin acceptors.
This system is only to use in combination with the ERGOX coin acceptors.
Type | Voltage, VDC | Qty of extraction lines | Dimentions, HxWxD, mm |
CEX001 | 24 | 1 | 600x600x210 |
CEX002 | 24 | 2 | 600x600x210 |
CEX003 | 24 | 3 | 600x600x210 |
